A Novel Environmentally Friendly Synergistic Mixture for Steel Corrosion Inhibition in 0.51 M NaCl
Keywords:corrosion inhibitor, synergistic effect, steel

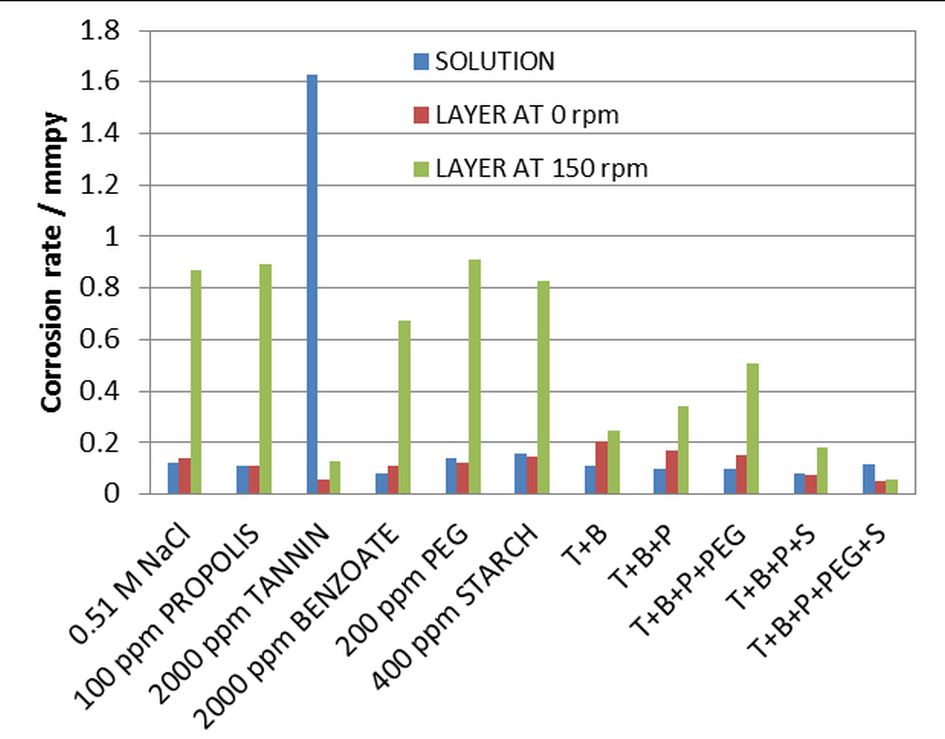

The ubiquitous use of plain and low-alloy steels in neutral, chloride bearing environments presents an everyday challenge for corrosion protection professionals. This paper explores the possibility of developing a non-toxic and environmentally friendly synergistic inhibitor mixture made of propolis, tannin, sodium benzoate, PEG400 and starch that could be applied into the solution to induce the formation of a persistent protective layer on steel. Components of the mixture were chosen based on the references giving their characteristics relevant to their possible action in the solution and/or at the surface of the steel. The efficiency of the protective layer formed under the influence of the inhibitor mixture, and then measured by the LPR probe in the inhibitor-free solution, was the lowest under quiescent conditions (75%) and the highest (95%) under flow conditions. Both, LPR and EIS data indicate that the inhibitor modified layer presents a barrier for diffusion of oxygen that acts as a primary corrosion reaction depolarizer in the investigated neutral chloride solution. The demonstrated persistence of the inhibitor modified layer is of primary interest as it gives possibility batch application.
Except where otherwise noted, articles in this journal are published under the Creative Commons Attribution 4.0 International License
